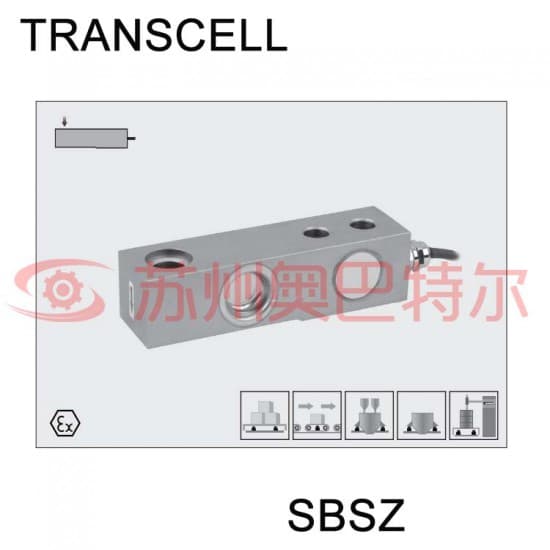

悬臂梁式，优质不锈钢材质，全密封焊接，高精度，高稳定性，防爆（可选），安装简便、快速，适用于平台秤、搅拌站、皮带秤和配料秤等。
•悬臂梁式
•优质不锈钢材质
•全密封焊接
•高精度
•高稳定性
•防爆（可选）
•安装简便、快速
•适用于平台秤、搅拌站、皮带秤和配料秤等
•Single ended shear beam load cell
•Senior stainless steel
•All sealed by welding
•High accuracy
•High stability
•Anti-explosion(option)
•Easy to install
•Suitable for floor scales,blending mixing systems,belt scales and batching systems,etc
Capacities 量程
250kg,500kg,1000kg,2000kg,3000kg,5000kg,10000kg,13500kg,20000kg
Schematic 接线方式
Red：＋ input 红色： ＋ 激励
Black：－ input 黑色： － 激励
Green：＋ output 绿色： ＋ 信号
White：－ output 白色：－ 信号
Specification 技术参数
|
Rated Output |
额定输出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.03% of rated output |
|
Nonlinearity |
非线性 |
±0.03% of rated output |
|
Hysteresis |
滞后 |
±0.03% of rated output |
|
Repeatability |
重复性 |
±0.03% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.002% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.002% of rated output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
|
Temp. Compensated |
温度补偿范围 |
150% |
|
Safe Overload |
安全载荷 |
-10ºC to + 40ºC |
|
Input Impedance |
输入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Insulation Resistance |
绝缘阻抗 |
≥5000 M ohm (50V DC) |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Maximum Excitation |
最大激励电压 |
15V DC/AC |
|
Cable Length |
导线长度 |
6m |
|
Cable Color Code |
导线颜色 |
ed(+E) Black(-E) Green(+S) White(-S) |
