产品特点 | Feature

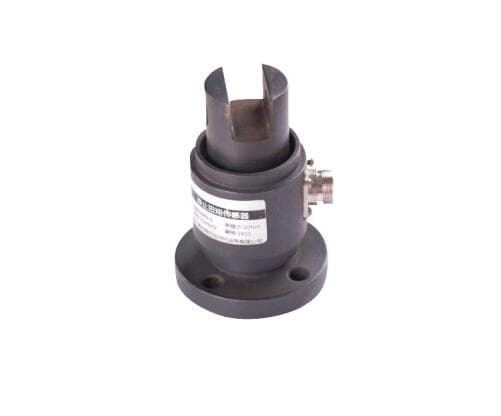

扭矩传感器
用于静态，非连续旋转的扭矩力值测量。被广泛应用于试验机，禁止扭矩检测等测试系统中，由于出色的稳定性及较高的测量精度而受到用户的赞誉
MRN-S02 Torque Sensor
Apply to static, non-continuous rotation of the torgue force values measured
量程 | Capacities
1,2,5,10,20,50,100,200,300,500N.m
客户可以根据自己需求定制量程。
技术参数 | Specification
|
Rated Output |
额定输出 |
1.0-1.5mv/v±1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕变 |
±0.03% of rated output |
|
Nonlinearity |
非线性 |
±0.1% of rated output |
|
Hysteresis |
滞后 |
±0.2% of rated output |
|
Repeatability |
重复性 |
±0.3% of rated output |
|
Temp. Effect on output |
灵敏度温漂 |
≤0.2% of applied output/℃ |
|
Temp. Effect on zero |
零点温漂 |
≤0.3% of rated output/℃ |
|
Safe temp. Range |
可用温度范围 |
-20℃ to +65℃ |
|
Temp. Compensated |
温度补偿范围 |
-10℃ to +20℃ |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
750Ω±30Ω |
|
Output Impedance |
输出阻抗 |
700Ω±5Ω |
|
Insulation resistance |
绝缘阻抗 |
≥5000MΩ（50V DC） |
|
Rated Excitation |
推荐激励电压 |
5V DC/AC |
|
Maximim Excitation |
最大工作电压 |
10V DC/AC |
|
Construction |
电线 |
2m |
|
Type |
型号说明 |
①型号+②量程+③非标功能F 如：LSZ-S02/10Kg |
|
Cable Color Code |
导线颜色 |
Red (+E) Black (-E) Green (+S) White (-S) |
