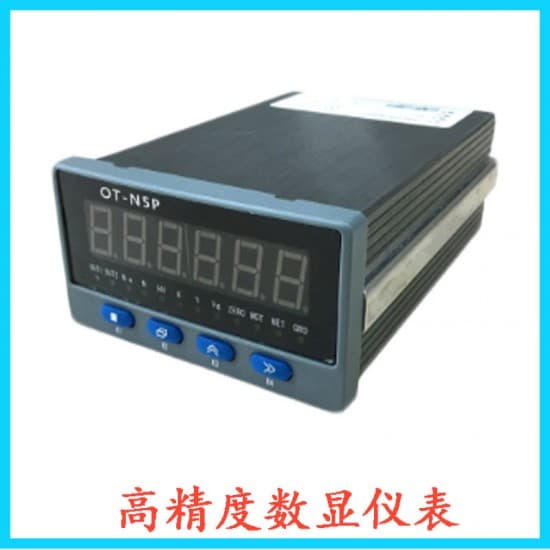

点击图片查看原图
产品特点 | Feature
High speed, high precision, high power supply voltage
AD measuring instrument technology
Have both weight transmitter and control function
Support multi unit switching function
Can be customized according to the user's demand
高速、高精度、高供桥电压
AD 转换技术测量仪表
集重量变送器与控制功能于一身
支持多力值单位切换功能
可根据用户需求灵活定制非标功能
技术参数 | Specification
|
Nonlinearity |
非线性 |
±0.05%FS |
|
Power supply |
电源 |
24VDC，220VAC |
|
Output Signal |
输出信号 |
-36~36mV |
|
Load Cell Excitation Power |
传感器激励电源 |
10VDC，150mA |
|
Operation Temperature |
使用温度范围 |
-10～40℃ |
|
Storage Temperature |
存贮温度范围 |
-25℃～55℃ |
|
Zero Temperature drift |
零点温度飘移 |
<±0.1%F.S |
|
Load resistance |
负载阻抗 |
<500Ω |
|
Maximum Inptut Signal |
量大输入信号 |
±19mV |
|
Accurate Class |
准确度等级 |
0.3 to 0.5 |
|
Cable color code |
导线颜色 |
Red(EX+)Blac（EX-)Green(SIG+)White（SIG-) |
|
Communication interface |
通讯接口 |
RS232、RS485 输出 |
|
Response Frequency |
响应频率 |
10次/秒到80次/秒的测控速度，配接应变传感器 |
