产品特点 | Feature

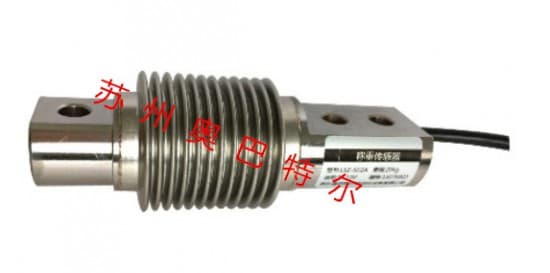

Single shear beam load cell
Laser welding of stainless steel structure
Anti fatigue, anti eccentric load, can bear tension, pressure of two working modes.
Can be used in harsh environments, such as wet or corrosive conditions
悬臂梁式
不锈钢结构 激光焊接
抗疲劳、抗偏载，可承受拉、压两种工作方式
适用于恶劣的环境中，例如潮湿或者腐蚀性的条件
量程 | Capacities
0.05，200,500,1，2，3，5，10 t
客户可以根据自己需求定制量程。
技术参数 | Specification
|
Rated Output |
额定输出 |
1.0~1.5mV/V±1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕变 |
±0.05% of rated output |
|
Nonlinearity |
非线性 |
±0.3% of rated output |
|
Hysteresis |
滞后 |
±0.1% of rated output |
|
Repeatability |
重复性 |
±0.3% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.05% of applied output/℃ |
|
Temp. Effect on zero |
零点温漂 |
≤0.05% of rated output/℃ |
|
Safe temp. Range |
可用温度范围 |
-10℃ to+70℃ |
|
Temp.Compensated |
温度补偿范围 |
-10℃ to+30℃ |
|
Safe Overload |
安装载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 Ω±20Ω |
|
Output Impedance |
输出阻抗 |
350 Ω±5Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推荐激励电压 |
5V DC/AC |
|
Maximum Excitation |
最大工作电压 |
10V DC/AC |
|
Protection Class |
防护等级 |
IP68 |
|
Construction |
电线 |
3m |
|
type |
型号说明 |
型号+‚量程+ƒ非标功能F(无非标则不需填写) 如：LSZ-S02A/200kg |
|
Cable Color Code |
导线颜色 |
Red(+E)Black(-E)Green(+S)White(-S) |
