产品特点 | Feature

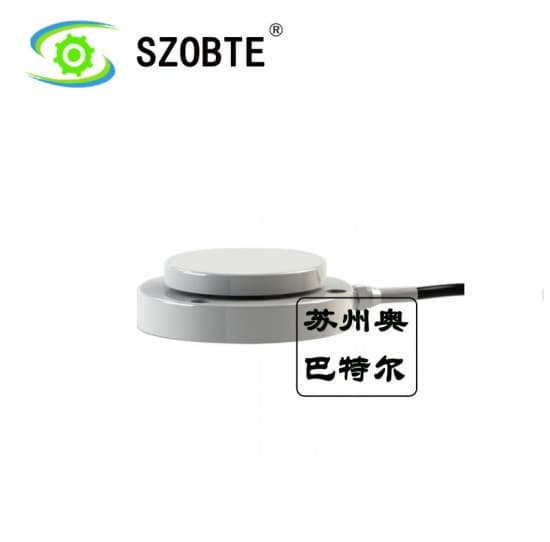

Mini-design，easy to install and use
Made of stainless steel, size and capacity could be customized
Force measurement in small space installation, such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.
外形小巧，便于安装
不锈钢材料，量程、尺寸可定制
主要应用于按键手感度测试仪，冷热压机压力检测、机器人手抓力及医疗注射泵，压装机等安装控件小的力值检测领域、
量程 | Capacities
0-10kg, 20kg, 30kg, 50kg
客户可以根据自己需求定制量程。
技术参数 | Specification
|
Rated Output |
额定输出 |
2.0mv/v±1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕变 |
±0.05% of rated output |
|
Nonlinearity |
非线性 |
±0.3% of rated output |
|
Hysteresis |
滞后 |
±0.01% of rated output |
|
Repeatability |
重复性 |
±0.3% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.05% of applied output/℃ |
|
Temp. Effect on zero |
零点温漂 |
≤0.05% of rated output/℃ |
|
Safe temp. Range |
可用温度范围 |
-10℃ to+70℃ |
|
Temp.Compensated |
温度补偿范围 |
-10℃ to+30℃ |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 Ω±20Ω |
|
Output Impedance |
输出阻抗 |
350 Ω±5Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Protection |
防护等级 |
IP65 |
|
Construction |
电线 |
2m |
|
type |
型号说明 |
型号+‚量程+ƒ非标功能F(无非标则不需填写) 如：LSZ-S68/20kg |
|
Cable Color Code |
导线颜色 |
Red(+E)Black(-E)Green(+S)White(-S) |
