产品特点 | Feature

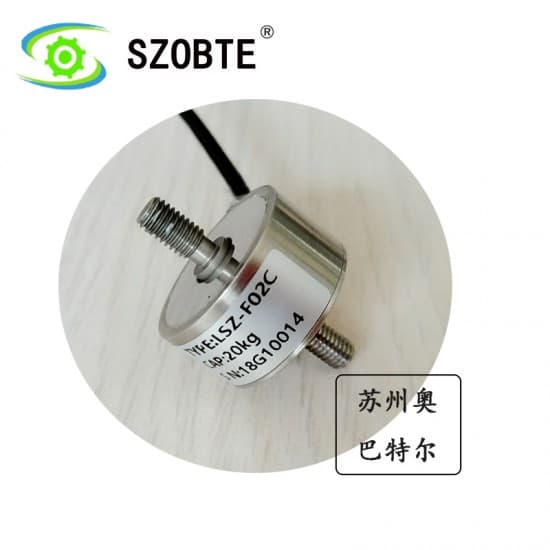

Load Cell
Anti-fatigue,contains strong side force resistance,can withstand tension and pressure of two kinds of work.
Application of tension and compression testing machine tensile testing experimental platform l.
传感器
不锈钢激光焊接，IP68防护等级
抗疲劳、抗偏载，可承受拉、压两种工作方式
适用于拉压试验机 实验平台拉力测试及其他力值的测量与控制。
量程 | Capacities
1,2,3,5,10,20,30,50,100,200,300,500,700,1000kg
客户可以根据自己需求定制量程。
技术参数 | Specification
|
Rated Output |
额定输出 |
2.0mv/v±1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕变 |
±0.03% of rated output |
|
Nonlinearity |
非线性 |
±0.03% of rated output |
|
Hysteresis |
滞后 |
±0.03% of rated output |
|
Repeatability |
重复性 |
±0.03% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.002% of applied output/℃ |
|
Temp. Effect on zero |
零点温漂 |
≤0.002% of rated output/℃ |
|
Safe temp. Range |
可用温度范围 |
-10℃ to+70℃ |
|
Temp.Compensated |
温度补偿范围 |
-10℃ to+40℃ |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 Ω±20Ω |
|
Output Impedance |
输出阻抗 |
350 Ω±5Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Cable Color Code |
导线颜色 |
Red(+E)Black(-E)Green(+S)White(-S) |
